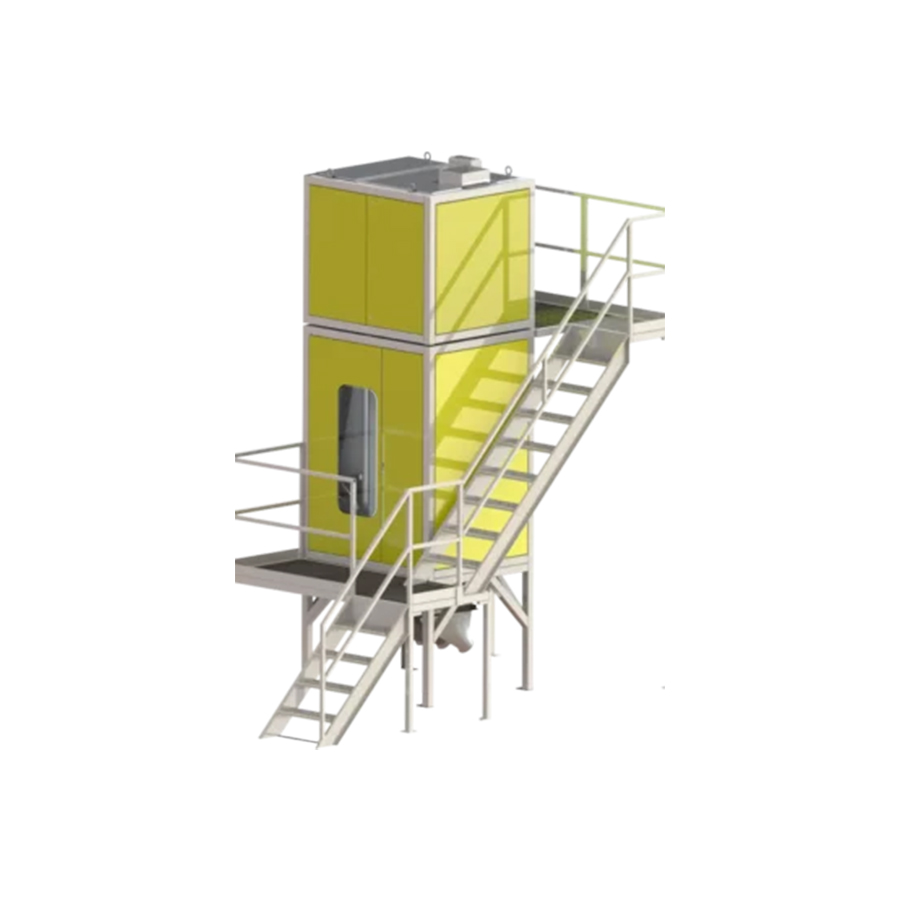

hamos EMS & KMS

Electrostatic mineral separators for unmixed fractions

hamos KMS electrostatic mineral separators sort heavy mineral sands economically and with good separation results into unmixed fractions. The dry process utilises the differences in the conductivity of the minerals for separation. Desired components can be concentrated or unwanted foreign substances separated from sands containing heavy minerals (e.g. ilmenite, rutile or zircon sands) and other suitable sand mixtures.

With hamos EMS electrostatic mineral separators, you can separate mineral mixtures such as quartz and feldspar into their components in a dry process. For example, the feldspar is separated and the quartz is concentrated. By utilising the tribo-electric behaviour of the individual minerals, the hamos EMS separates your mixed materials into pure fractions with little effort.

Category HAMOS

To achieve optimum separation results with the hamos KMS, the mineral mixtures to be separated must be

be as follows:

Mixture of minerals with different conductivity
Dry material
Dedusted material (fine dust should be separated beforehand)
Particle size 100 µm to 1000 µm
Maximum material temperature + 140° C

In order to achieve optimum separation results with the hamos EMS, the mineral mixtures to be separated must be

be as follows:

Mineral mixture with different charging behaviour
Particle size 100 µm to 1000 µm
Dry material
Dedusted material (fine dust should be separated)
Maximum material temperature + 150° C
Ideally a two-component mixture

Not sure whether your material is suitable for electrostatic separation? Talk to our experts. We would be happy to carry out a separation test in our technical centre to examine the separability of your material.

We will show you the purities and throughputs we can achieve with your material. You will receive our test report based on these separation results. We will then offer you the optimum device or system for your application.
